To Configure XML As Source In Scribe Insight

Introduction:

You can import XML as a data source, using Scribe Insight, to execute two primary actions:

• Integrate with locally available XML data.
• Receive data as XML from remote systems.

Steps:

1. Open Scribe Workbench and click on ‘Configure Source’.

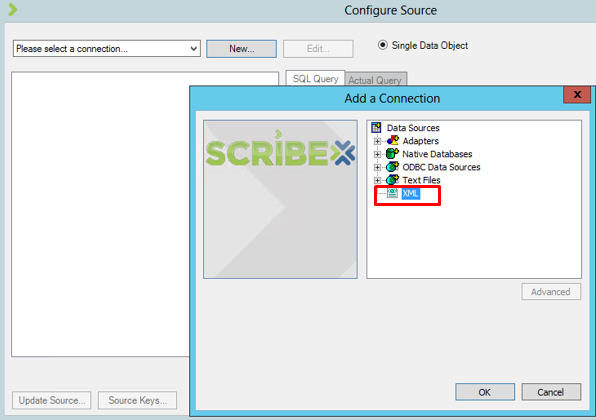

2. Click on ‘New’ and select XML.

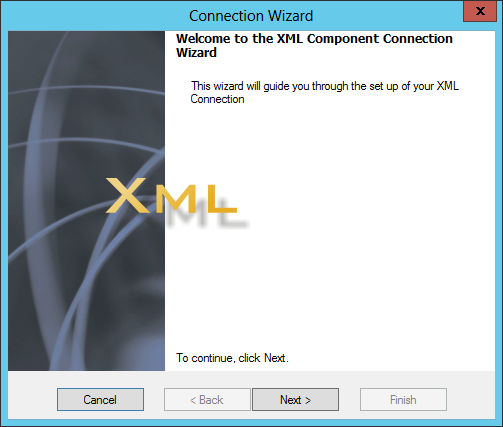

3. The XML Component Connection Wizard will open. Click Next.

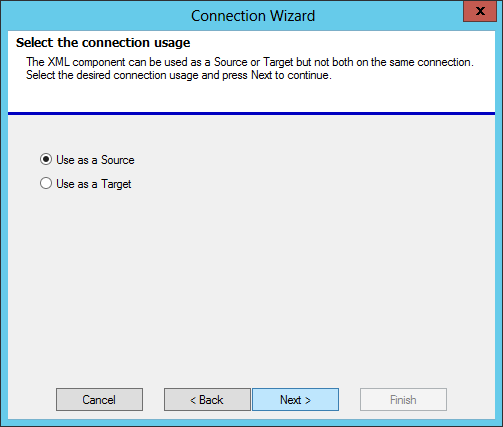

4. Select ‘Use as a Source’. Click Next.

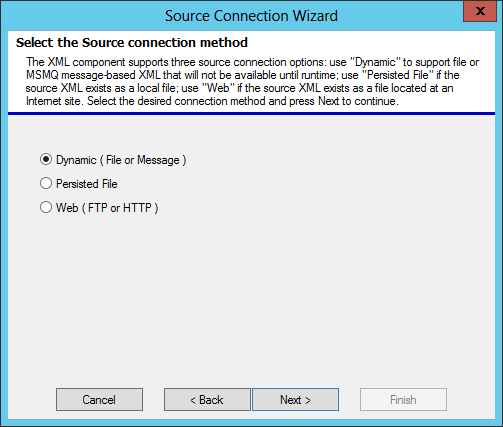

5. Select ‘Dynamic’ and click Next.
6. In the ‘Sample Source Document File’ field, input the XML File (.xml) path and in the ‘Schema File or URL’ field, input the path of the Schema file (.xsd).

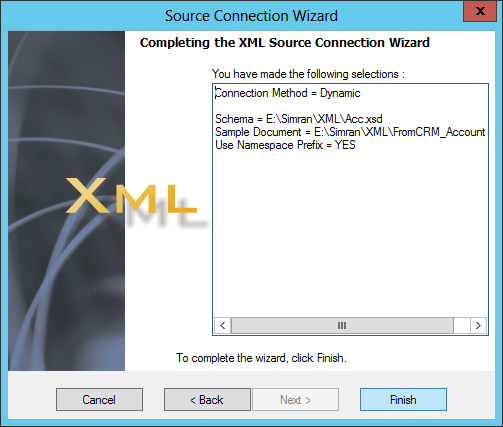

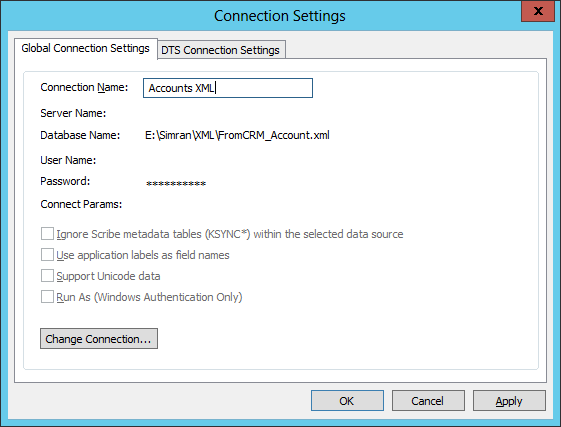

7. Click Finish and give a name to the XML source. Click OK.

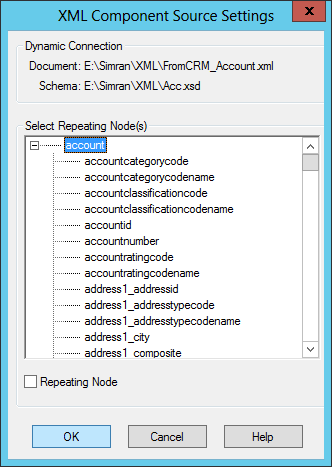

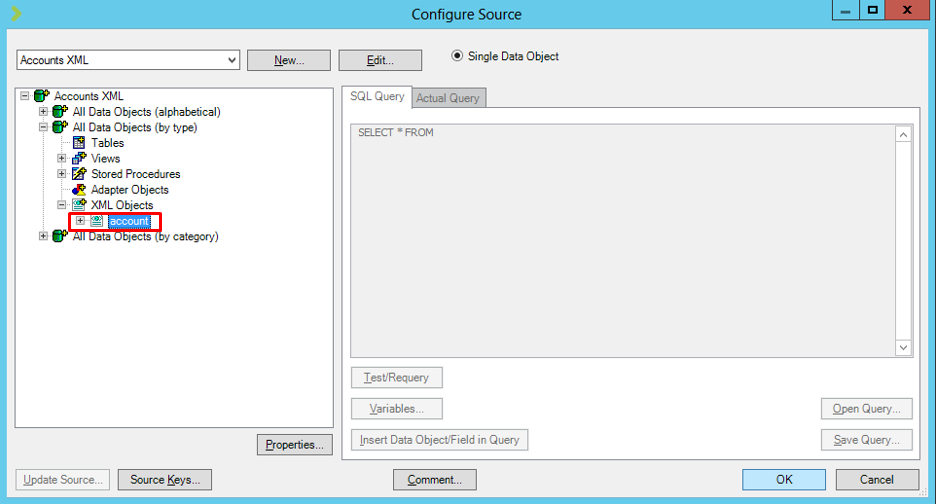

8. Select ‘XML Objects’ and select the entity. Click OK.

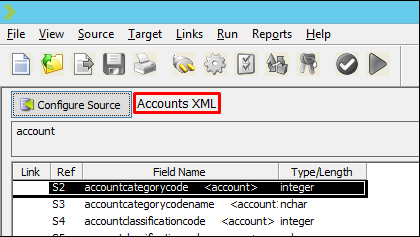

9. It will now be configured as the Source.

Now you may proceed with mapping the fields required for integration with XML as the Source.
