Seamlessly Switching Lead-Based BPFs After Qualification in Dynamics 365 CRM

In Microsoft Dynamics 365 CRM, Business Process Flows (BPFs) are powerful tools that guide users through defined business stages. However, when working with Lead-based BPFs that persist into Opportunity, certain platform limitations surface-especially when multiple Lead-rooted BPFs are involved.

This blog walks through a real-world problem I encountered with Lead → Opportunity BPF switching, why the out-of-the-box behavior falls short, and how I designed a robust client-side + server-side solution to safely and reliably switch BPFs-even after the Lead has already been qualified.

How BPFs Work (Quick Recap)

• 1] A Business Process Flow is always anchored to a primary entity (Lead, Opportunity, Account, etc.).
• 2] When a Lead is qualified, Dynamics:
  • -> Creates an Opportunity
  • -> Carries forward the same BPF instance (if the BPF supports Opportunity)
• 3] If multiple BPFs share the same primary entity (Lead):
  • -> The active BPF continues into Opportunity
  • -> Switching BPFs at the Opportunity level is blocked

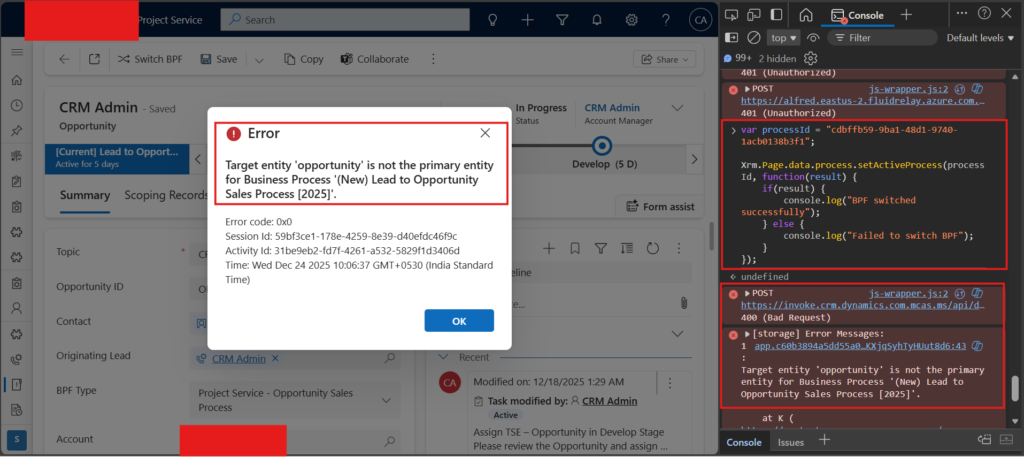

It ideally won’t allow a switch, either via brute forcing via client side or server side as –

• 4] The switch must happen on the Lead
• 5] This behavior is by design—but it creates a usability and governance challenge.

The Problem

In my scenario:

• 1] There are two Lead-based BPFs

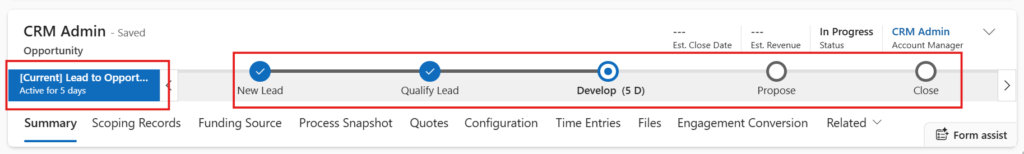

  • -> An older BPF -> [Current] Lead To Opportunity Sales Process

• 2] A newer BPF -> (New) Lead to Opportunity Sales Process [2025]

• 3] Both:
  • -> Have Lead as the primary entity
  • -> Persist into Opportunity

The Challenge

Once a Lead is qualified:

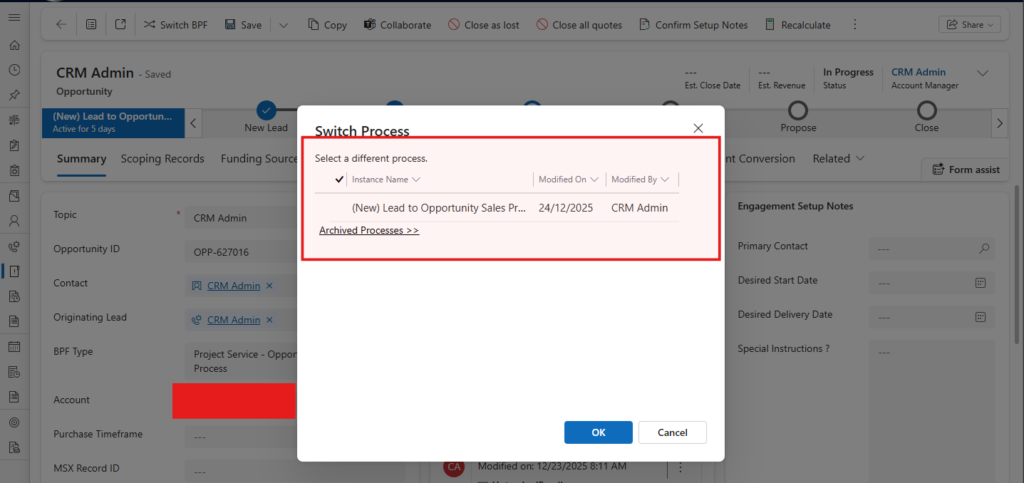

• 1] Users cannot switch the BPF directly on Opportunity (Even if you use OOB Switch Process, it would only show the in use Active BPF, as it discourages switching when not in the Primary Entity Form)

• 2] They must:
  1. Navigate back to the originating Lead
  2. If switched for the first time, then only those BPF fields which are present on both BPFs, or on the main form would be populated, the new once must be filled manually as expected.
  3. Switch the BPF
  4. Return to the Opportunity

This is non-intuitive, error-prone, and inefficient, especially considering the manual effort that goes into it.

Solution Overview

I implemented a guided, safe, and reversible BPF switching mechanism that:

• 1] Starts from the Opportunity
• 2] Performs the switch on the Lead (as required by the platform)
• 3] Handles:
  • -> Existing BPF instances
  • -> First-time switches
  • -> Server-side persistence
• 4] Returns the user back to the same Opportunity, with the new BPF active

High-Level Architecture

This solution uses:

• -> Custom ribbon button (Opportunity)
• -> Client-side JavaScript orchestration
• -> Lead-based trigger flags
• -> Server-side plugin for data integrity
• -> Controlled abort + activation of BPF instances

Step-by-Step Methodology

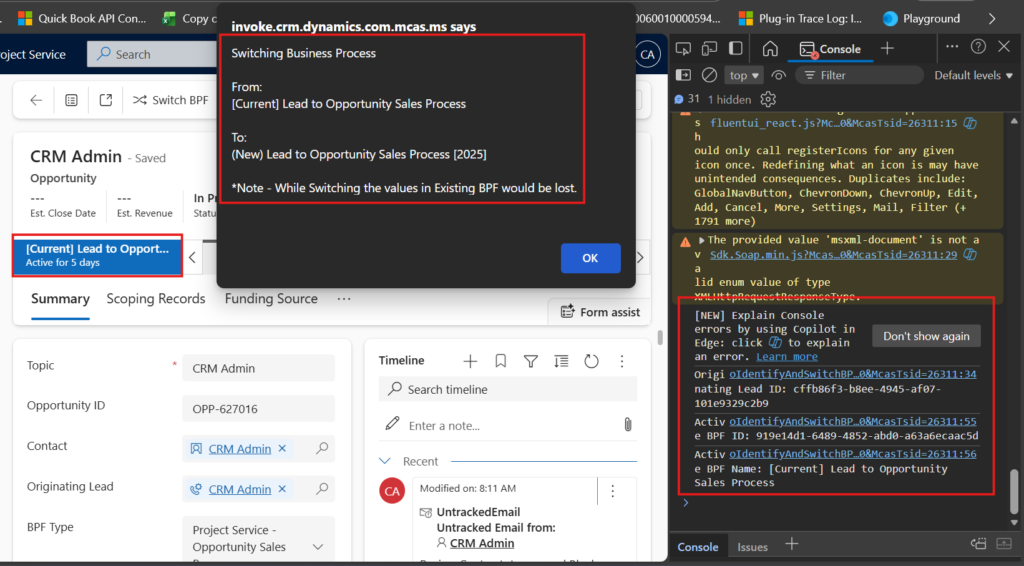

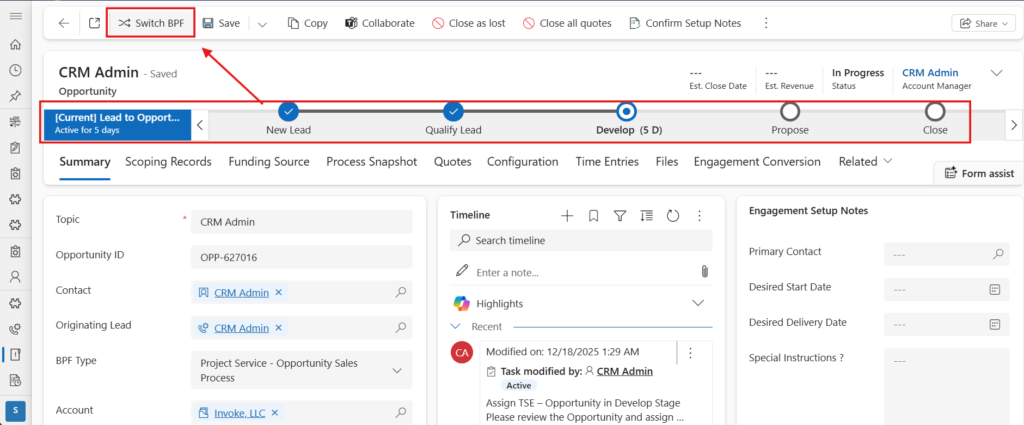

1. Entry Point: Opportunity Ribbon Button

A custom ribbon button on the Opportunity form:

• 1] Identifies the originating Lead
• 2] Detects the currently active BPF
• 3] Determines the target BPF

• 4] Sets trigger fields on the Lead:
  • -> cf_switchbpftriggeropportunity (timestamp)
  • -> cf_shouldtrigger (boolean guard)

These fields act as a controlled handshake between Opportunity and Lead.

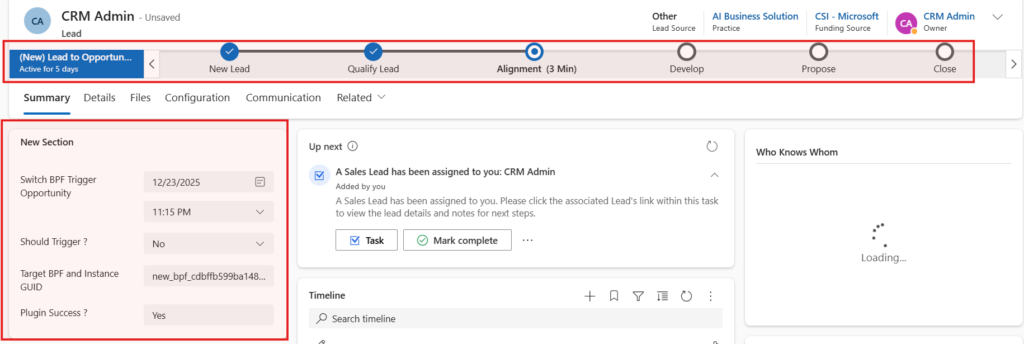

2. Lead OnLoad: Controlled Trigger Execution

On Lead form load:

• 1] Since, the user might also directly open the Lead form, and we do not want the client side function (As the End-User expects a smooth functioning Switch at UI Level) to trigger at that time, but only when an actual switch has been performed from it’s associated Opportunity, we would require a group of controlled & timed date-time & Boolean flags.

• 2] The script checks:
  • -> Trigger timestamp freshness (≤ 20 seconds)
  • -> Guard flag (cf_shouldtrigger)
• 3] Immediately resets the guard flag to prevent re-entry
• 4] Shows a progress indicator to the user

This ensures:

• -> No accidental loops
• -> No unintended execution from normal Lead access

3. Identifying and Aborting the Existing BPF

Before switching:

• 1] The solution:
  • -> Locates the active BPF instance
  • -> Finds its corresponding BPF entity record
• 2] If found:
  • -> The instance is aborted (statecode = Inactive)
  • -> This ensures:
    • -> Clean detachment
    • -> No conflicting active BPFs

This is a critical step—without aborting the old instance, Dynamics can behave unpredictably.

4. Switching the UI BPF

After aborting:

• -> formContext.data.process.setActiveProcess(targetBpfId) is called
• -> This switches the visual BPF on the Lead
• -> At this point:
  • -> Dynamics may or may not auto-create a BPF instance

5. Handling BPF Instance Creation (First-Time Switch Logic)

The solution explicitly checks:

• 1] Does a BPF instance for the target process already exist?

If it exists:

• 1] Reactivate it
• 2] Update:
  • -> Active stage
  • -> Traversed path
  • -> Opportunity binding

If it does NOT exist (first switch):

• 1] Fetch the auto-created instance
• 2] Store its reference temporarily
• 3] Apply:
  • -> Correct stages
  • -> Traversed path
  • -> Opportunity association

This dual-path logic makes the solution idempotent and reusable.

6. Server-Side Plugin: Persisting the Truth

A plugin ensures that:

• 1] Changes made client-side are:
  • -> Persisted
  • -> Correct even if the browser session fails
• 2] The plugin:
  • -> Detects which BPF entity is being updated
  • -> Identifies the related Lead and Opportunity
  • -> Applies:
    • -> Qualify stage
    • -> Final stage
    • -> Correct traversed path
    • -> Opportunity binding
• 3] Sets a success flag on the Lead for traceability

This guarantees data consistency and auditability.

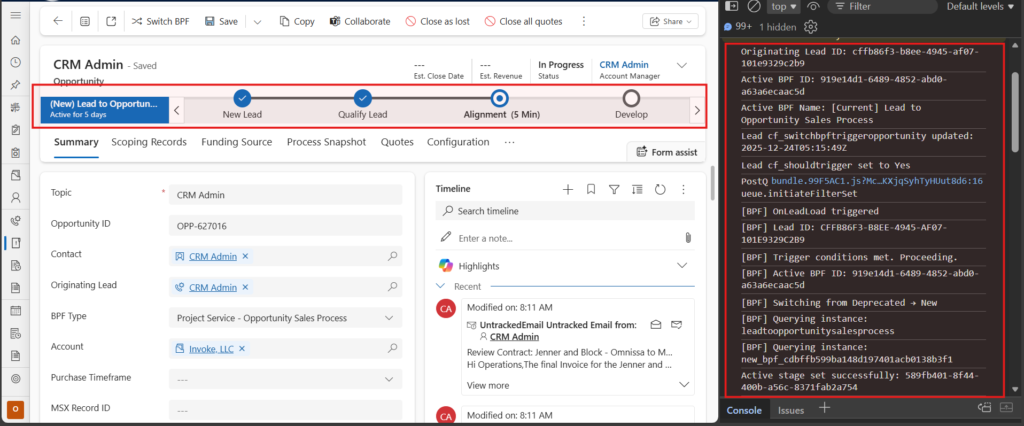

7. Final UI Sync & Redirect

After successful completion:

• 1] The Lead form:
  • -> Refreshes the BPF state

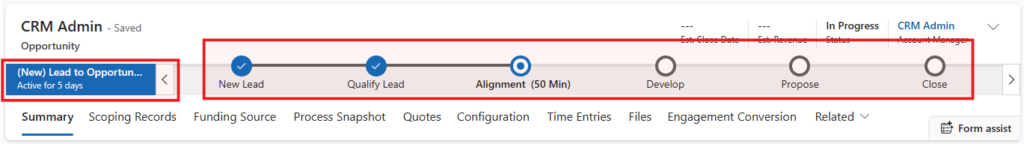

• 2] The user is automatically:
  • -> Redirected back to the associated Opportunity
  • -> With the new BPF fully active and aligned

From the user’s perspective:

“I clicked a button, confirmed the switch, and landed back in my Opportunity—done.”

Why This Solution Works

✔ Respects Dynamics 365 BPF constraints
✔ Prevents orphaned or conflicting BPF instances
✔ Handles first-time and repeat switches
✔ Ensures server-side persistence
✔ Minimal user disruption
✔ Fully reversible

Most importantly, it bridges the gap between platform limitations and real business needs.

Final Thoughts

Dynamics 365 BPFs are powerful—but when multiple Lead-rooted processes coexist, manual switching is not enough.

This solution demonstrates how:

• -> Client-side orchestration
• -> Server-side validation
• -> Careful instance lifecycle management

can be combined to deliver a seamless, enterprise-grade experience without unsupported hacks.

If you’re facing similar challenges with Lead → Opportunity BPF transitions, this pattern can be adapted and reused with confidence.
