Master Guide: Team Foundation Server (TFVC) & Azure DevOps Configuration for Dynamics 365 Finance & Operations

In the world of Dynamics 365 Finance & Operations (D365 F&O), efficient code management isn’t just a luxury-it’s a critical requirement. Whether you are a seasoned developer or just setting up your first Virtual Machine (VM), correctly configuring Visual Studio with Azure DevOps (Team Foundation Server/TFVC) is the bedrock of a stable development lifecycle.

This guide will walk you through the step-by-step configuration to ensure your environment is ready for enterprise-grade development.

1. Why TFVC and Not Git?

While Git is widely adopted across modern software development, Team Foundation Version Control (TFVC) continues to be the preferred version control system for Dynamics 365 Finance & Operations due to its architectural fit.

• a. Centralized Control: TFVC works more effectively with the XML-based metadata model used in D365 F&O.
• b. Exclusive Locking: t enforces check-out locks, preventing multiple developers from editing the same object at the same time-reducing the risk of conflicts and potential corruption of X++ binaries.

2. Prerequisites

Before you dive into Visual Studio, ensure you have the following ready:

• a. Azure DevOps Organization: You need an active account and project at dev.azure.com.
• b. D365 F&O Development VM: A Cloud-Hosted (Tier 1) or Local VHD environment.
• c. Visual Studio: Typically, VS 2019 or 2022 (depending on your Service Update version) running as Administrator.

3. Step-by-Step Configuration

Step A: Connect Visual Studio to Azure DevOps

1. Open Visual Studio as an Administrator.
2. Navigate to Team Explorer (View > Team Explorer).
3. Click on the Manage Connections (plug icon) > Connect to a Project.
4. In the dialog, select your Azure DevOps Server/Organization.
5. Select your specific Project and click Connect.

Step B: The “Golden” Folder Structure

Before mapping, you must define a clean folder structure in your Azure DevOps repository (Source Control Explorer). A standard structure looks like this:

• a. Trunk
  • 1. Main (The primary stable branch)
    • a. Metadata (Houses your X++ packages/models)
    • b. Projects (Houses your Visual Studio Solution files)

Step C: Workspace Mapping (The Critical Step)

This is where most errors occur. You must map the server folders (Azure DevOps) to the specific local directories where the D365 runtime looks for code.

1. In Team Explorer, click Source Control Explorer.
2. Open the Workspaces dropdown and select Workspaces… > Edit.
3. You need to create two distinct mappings:

Note: On some local VHDs or older VMs, the drive letter might be C: or J: instead of K:. Verify your AOSService location before mapping.

• – Click OK. Visual Studio will ask if you want to download the latest files. Click Yes.

Step D: Configuring Dynamics 365 Options

Once mapped, you need to tell Visual Studio to organize new projects correctly.

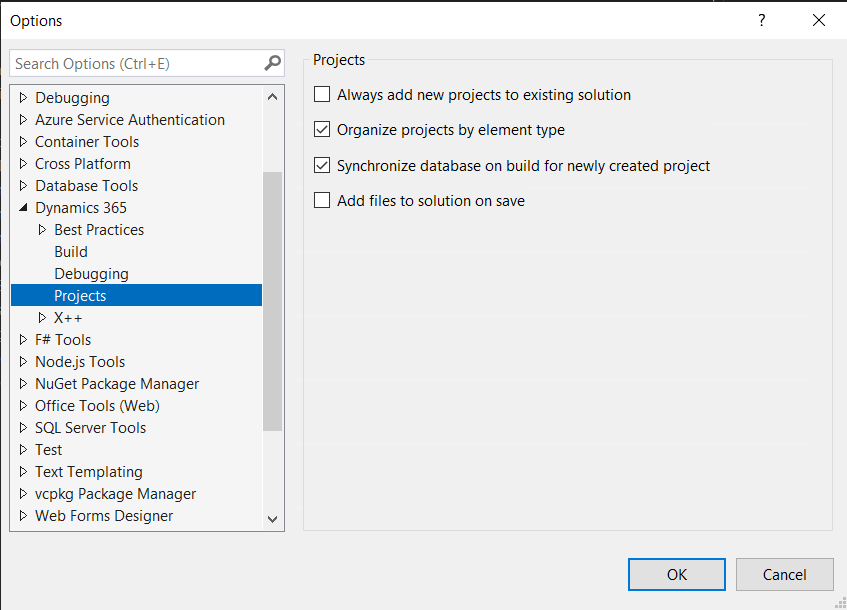

1. a. Go to Extensions > Dynamics 365 > Options.
2. b. Under Dynamics 365 > Projects:
   • 1. Set “Organize projects by element type” to True.
   • b. Ensure the “Project folder” defaults to your mapped Projects folder (e.g., C:\Users\Admin\source\repos).

4. Best Practices for the Development Lifecycle

• a. Always Branch: Never develop directly on Main. Create a Dev branch from Main and map your workspace to Dev. Merge back to Main only for releases.
• b. Get Latest: Always perform a “Get Latest” on your workspace before starting work to avoid conflicts.
• c. Check-in Policy: Ensure your solution builds without errors before checking in. Using a “Gated Check-in” build pipeline is highly recommended.

To conclude, configuring Visual Studio for D365 F&O is a one-time setup that pays dividends in stability. By ensuring your Metadata maps to the AOS service directory and your Projects map to your user directory, you create a seamless bridge between your IDE and the D365 runtime.
